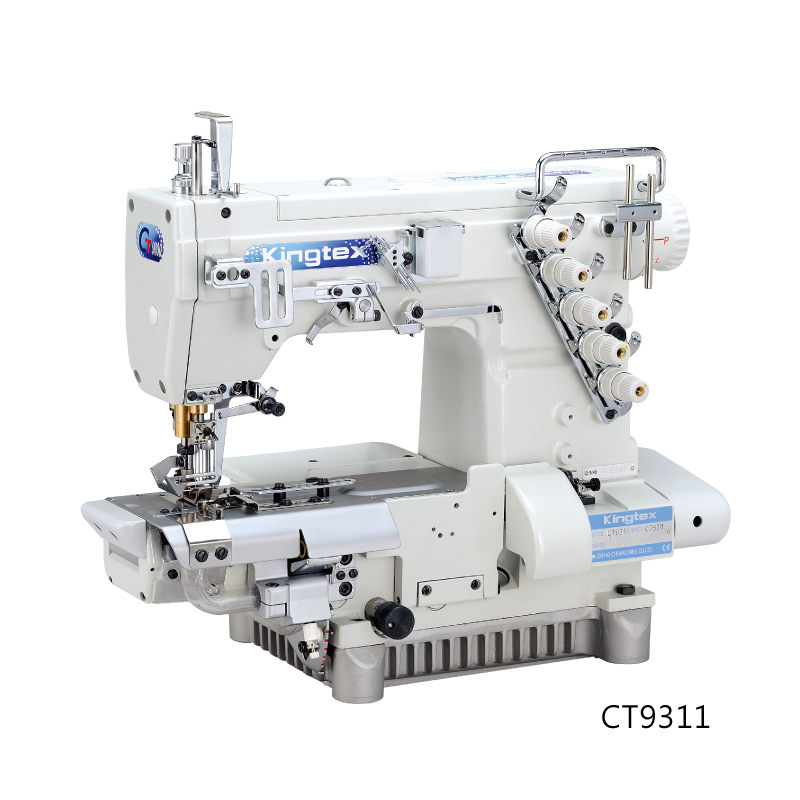

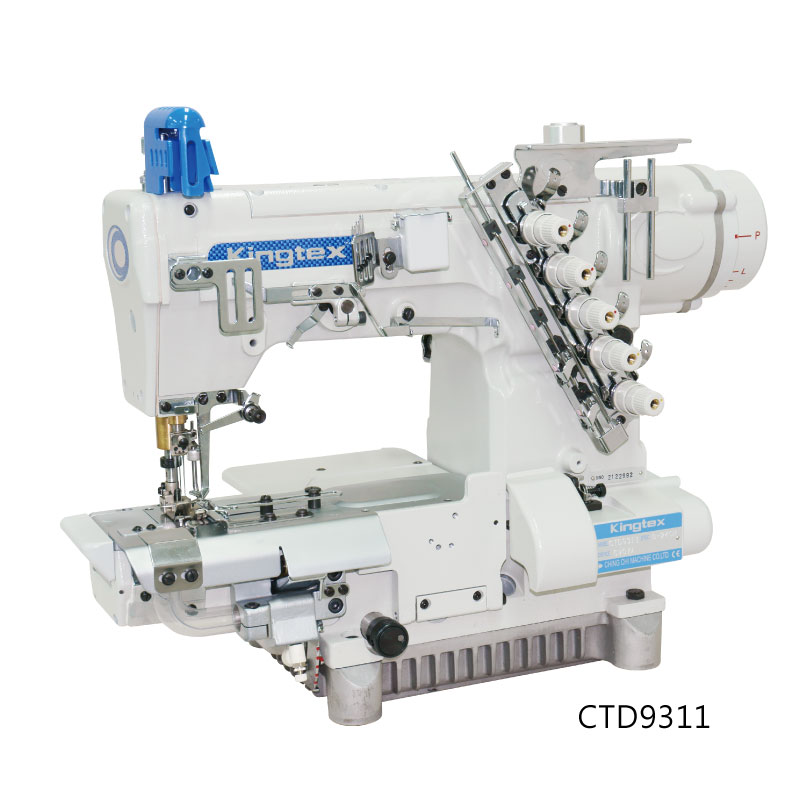

CT9311/CTD9311

選單

首頁 /產品總覽/CT9311/CTD9311

CT9311/CTD9311下擺/ 左切刀修布邊

CTD9000 使用說明書

CT9311零件冊

型錄

CT9000 使用說明書

原產品分類： CTCX

產品說明

下擺/ 左切刀修布邊。
針織T恤、休閒服、運動服之下襬或短袖袖口之車縫作業。
適用薄至中厚布料。
具有車縫下襬導模，左切刀修布裝置及吸屑導管，可輕易將環狀裁片向下捲折，並由左切刀將捲折後之裁片在下層的部份之左緣修齊，再進行車縫，而在切
刀修布之同時，布屑則由吸風裝置或壓縮空氣經吸布屑導管吸出。
下襬適用寬度 : 3/4″ ~ 1 ½” (完成尺寸)。

									Optional
CT9311-0-240M	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / CS003 / TROZA / CV17A
CT9311-0-248M	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / CS003 / TROZA / CV17A
CT9311-0-348M	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / CS003 / TROZA / CV17A
CT9311-0-356M	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / CS003 / TROZA / CV17A
CT9311-0-364M	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / CS003 / TROZA / CV17A
CT9311-0-356L	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-240S	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-348S	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-356S	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-364S	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-240S1	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-248S1	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-348S1	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-356S1	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-364S1	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-356S2	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-364S2	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-240H	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-248H	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-348H	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-356H	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CT9311-0-364H	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-A / UCE-A / TR02A / CV17A
CTD9311-0-240M	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B / CS003 / TRO2A / CV17A
CTD9311-0-248M	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B / CS003 / TRO2A / CV17A
CTD9311-0-348M	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B / CS003 / TRO2A / CV17A
CTD9311-0-356M	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B / CS003 / TRO2A / CV17A
CTD9311-0-364M	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B / CS003 / TRO2A / CV17A
CTD9311-0-356L	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-240S	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-248S	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-348S	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-356S	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-364S	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-240S1	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-248S1	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-348S1	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-356S1	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-364S1	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-356S2	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-364S2	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-240H	2	4	4.0	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-248H	2	4	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-348H	3	5	4.8	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-356H	3	5	5.6	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
CTD9311-0-364H	3	5	6.4	1.4~3.6	1:0.3 ~ 1:2.9	5	#11	4500	UCP-B / UCE-B/ TROZA CV17A
